fischer RG M12x160 5.8 ZP RG M12x160 5.8 ZP ANCHOR ROD

The proven rod anchor for internal use with a mortar cartridge or injection mortar.

Price : 3133.00 1452.00 ₹
Available Product Variants
Top Features
  • Approved for anchorage in cracked and non-cracked concrete, solid brick masonry, perforated masonry, and aerated concrete in combination with various mortar cartridges or injection mortars.
  • Anchor rod with oblique edge and hexagon for simple installation with pre-portioned injection cartridge.
  • Zinc-galvanised steel for internal use.

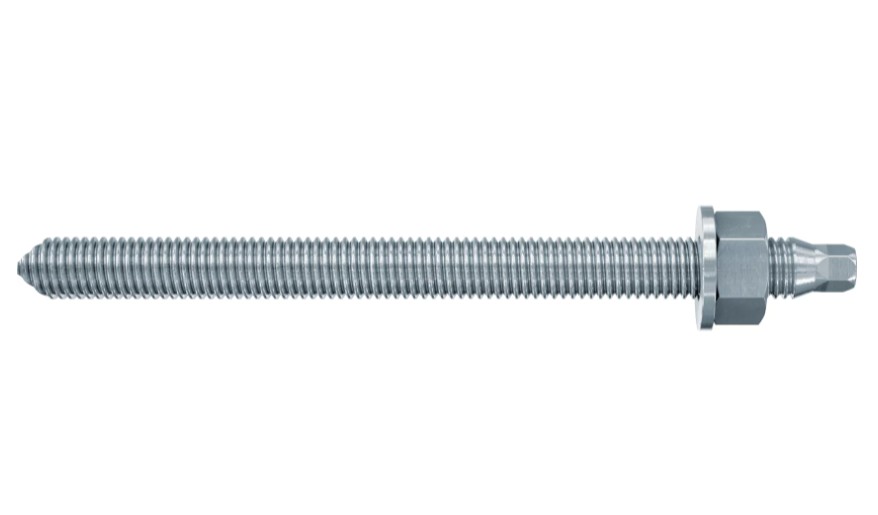

Product Picture
Product Picture
Application Picture
Application Picture
Application Picture
Product Picture
Product Picture
Application Picture
Application Picture
Application Picture
1   1
Variant Art.-No. 50258 fischer RG M12x160 5.8 ZP RG M12x160 5.8 ZP ANCHOR ROD
ETA dyn
Drill diameter 14 mm
Max. fixture thickness 74 mm
Thread M12
Width across nut 19 mm
Packaging Folding box
Price / Pack Price : 3133.00 1452.00 ₹

Product Description

The fischer rod anchor RG M is made of zinc-plated steel with a grade of 5.8. The anchor rod is a systems accessory for various fischer mortar cartridges or injection mortars. Application with pre-portioned mortar cartridges is especially cost-effective for individual fixings. During mounting with the resin capsule, set the fischer anchor rod RG M through rotating and hitting motions with a hammer drill. The capsule is destroyed during the setting process, which mixes and activates the mortar compound. During mounting with injection mortars, the anchor rod is pushed into the drill hole manually by lightly rotating it. The system is particularly suitable for cost-effective fixing of machines, steelwork constructions, and supporting feet in internal areas.
Advantages
  • The wide range of the RG M from M8 to M30 opens up a wide range of applications and therefore offers great flexibility.
  • The wide range of approved steel types for RG M allows for use in all corrosion resistance classes and offers the best possible application safety.
  • Please refer to the approval for the RM II resin capsule or the FIS EM mortar.

Application and Permission

Applications
  • Anchorings with resin capsule RSB and RSB mini
  • Anchorings with resin capsule RM II
  • Anchorings with each of the fischer injection mortars such as FIS SB, FIS EM Plus, FIS EB II, FIS V, FIS VL, FIS V Zero, FIS P Plus, FIS P, FIS EP and FIS Green
Building materials
  • In connection with the fischer resin capsules approved or suitable for cracked and non-cracked concrete.
  • In connection with several fischer injection mortars approved or suitable for different building materials.

* You can find detailed information on building materials in the registration document.

Permission

ETA-02/0024 ETA-19/0501 ETA-20/0603 DoP No. 0756-CPD-0300

For Details see corresponding Documents

Assembly Instruction

Functionality
  • Due to its oblique edge, the anchor rod RG M is particularly suitable for use in conjunction with resin capsules.
  • The anchor rod RG M is set using a hammer drill and the accompanying setting tool in rotating and hitting motions.
  • During setting, the oblique edge of the RG M destroys the capsule, and mixes and activates the mortar.
  • Use with injection mortar is also possible. Here, the anchor rod is manually inserted into the drill hole with a light rotating movement until it reaches the base of the hole.

Technical Data

Technical Data

ETA dyn
Drill diameter 14 mm
Max. fixture thickness 74 mm
Thread M12
Width across nut 19 mm
Packaging Folding box
Legend = Permission Available — = Permission not Available

Documents for Downloading

Approvals

Title Type Created Valid Till
ETA Certification Document European Technical Assessment for Injection System fischer FIS V - Bonded anchor for use in concrete ETA-02/0024 13/05/2020
ETA Certification Document European Technical Assessment for fischer Superbond dynamic - Post-installed fasteners in concrete under fatigue cyclic loading ETA-19/0501 11/06/2024
ETA Certification Document European Technical Assessment for Injection System fischer FIS V Plus - Bonded anchor for use in concrete ETA-20/0603 13/11/2020
DOP - Declaration of Performance Declaration of Performance for fischer Resin anchor R DoP No. 0756-CPD-0300 14/05/2013 14/05/2028
